Organic Fertilizer Production Use New Type Organic Fertilizer Granulating Machine
Introduction to new type organic fertilizer granulating machine
New type organic fertilizer granulator machine is used for granulation of various organic materials after fermentation, breaking through the conventional organic granulation process. It does not dry, crush or granulate the raw materials before pelletizing and can process the spherical granules by direct proportioning, which saves a lot of energy.
Specifications of new type organic fertilizer granulating machine
| Model | Capacity (t/h) | Discharge Size(mm) | Power(kw) | Dimensions(L× W ×H)(mm) |
| YSL60 | 1.5-2.5 | 1-6 | 45 | 4180×1760×1080 |
| YSL80 | 2-4 | 1-7 | 55 | 5050×1500×1360 |
| YSL100 | 3-6 | 2-8 | 75 | 6470×1450×1560 |
| YSL120 | 4-8 | 2-8 | 90 | 6650×1800×1090 |
| YSL150 | 5-10 | 2-8 | 110 | 6840×2120×2200 |
Working principle of new type organic fertilizer granulating machine
1. You need to prepare the powdery organic fertilizer before, and put the powder organic fertilizer material into the new type organic fertilizer granulating machine.
2. You can control the diameter of the fertilizer particle by adjusting the mixing capacity and speed of the materials. In general, the lower the mixing capacity, the faster the speed, the smaller the particles
3. The internal structure of the new type organic fertilizer making machine will granulate the material through high-speed mixing, granulation, extrusion, polishing and other processes in the cylinder. The material is made into finished particles and discharged from the outlet.
Features of new type organic fertilizer granulating machine
1. The principle is simple, and the granulation speed is fast; using high speed rotating mechanical shearing force and the resulting air power makes continuous implementation of the fine powder material in the machine mixing, granulating, spheroidzing, density and other processes.
2. The granule quality is high and the machine is especially suitable for granulation of light powder materials. Finer particles of fine powder, higher sphericity of granules, and higher pellets quality.
3. No bond is required; using the particles of organic matter to be interbred with each other under certain forces, so no bond is needed for granulation.
Advantages of new type organic fertilizer granulating machine
1. The pellets made by are rich in organic matters. The organic content of finished pellets can reach 100%. You can get purer organic matter fertilizers.
2. It can make high quality pellets. You can get high granulation rate as high as 90%, and the finished pellets have higher strength than the pellets which are made by disc pan granulator and rotary drum granulators.
3. It can save your power consumption. Its power consumption for granulating is less than traditional organic fertilizer granulating machine. It can granulate fermented organic materials without drying in advance, which can save your usage of coal. Because of this, you can save more electricity in organic fertilizer production line.
Application of new type organic fertilizer granulating machine
1. If you want to make bio organic fertilizers, you can granulate with peat, lignite, organic fertilizer sludge and straw.
2. If you have much animal manure such as chicken manure, pig manure or cow dung, you can use them to make organic fertilizer by this machine.
3. You can also produce complete feed and compound feed stuff with corn, beans, and grass powder and so on.
Product Tags:
|
|

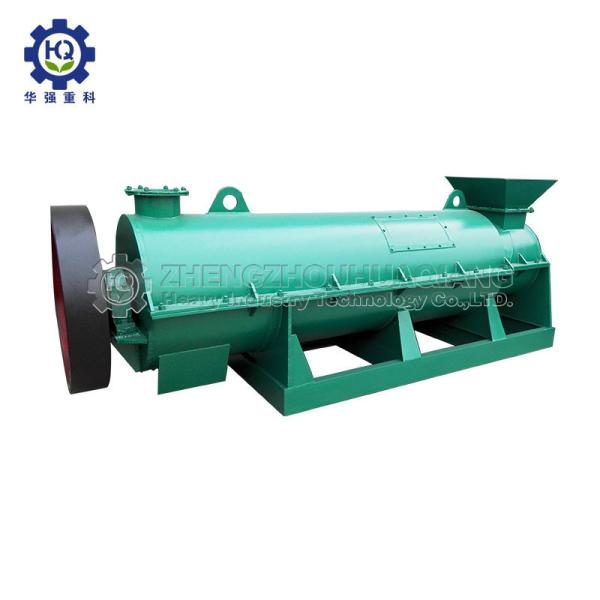

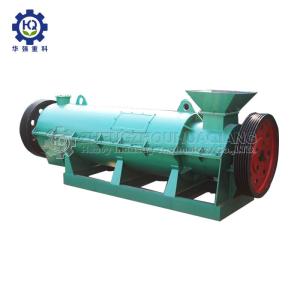

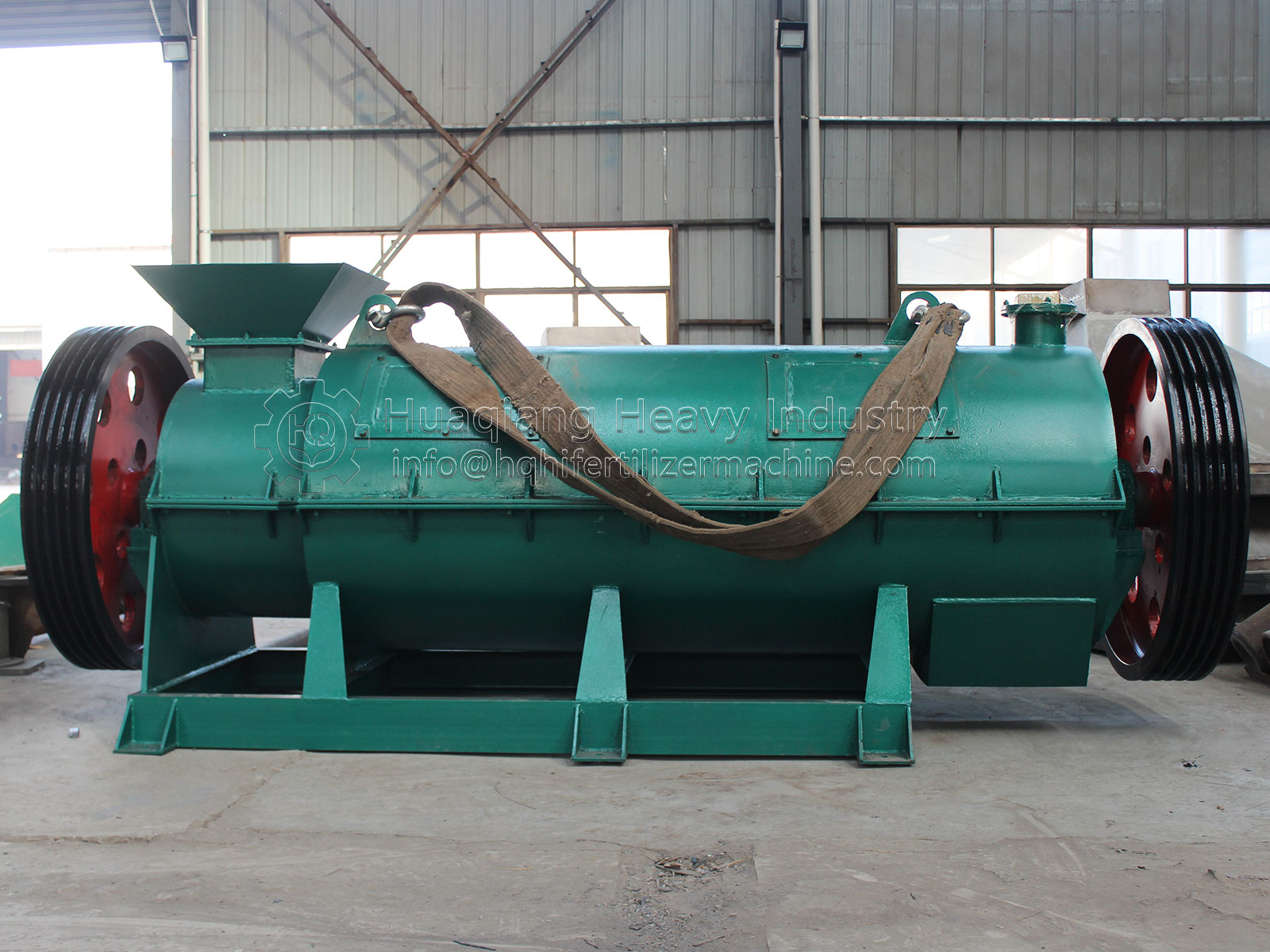

45KW Chicken Manure Round Organic Fertilizer Granulator Machine Images
|
